What is a Soil Nailing Retaining Wall?
Soil nailing retaining walls are an advanced earth retention solution that combines grouted steel nails and precast blocks to stabilize slopes and vertical cuts. MagnumStone’s hollow core precast block design provides accessible anchor points for soil nails, fast installations and stone-textured block facings.

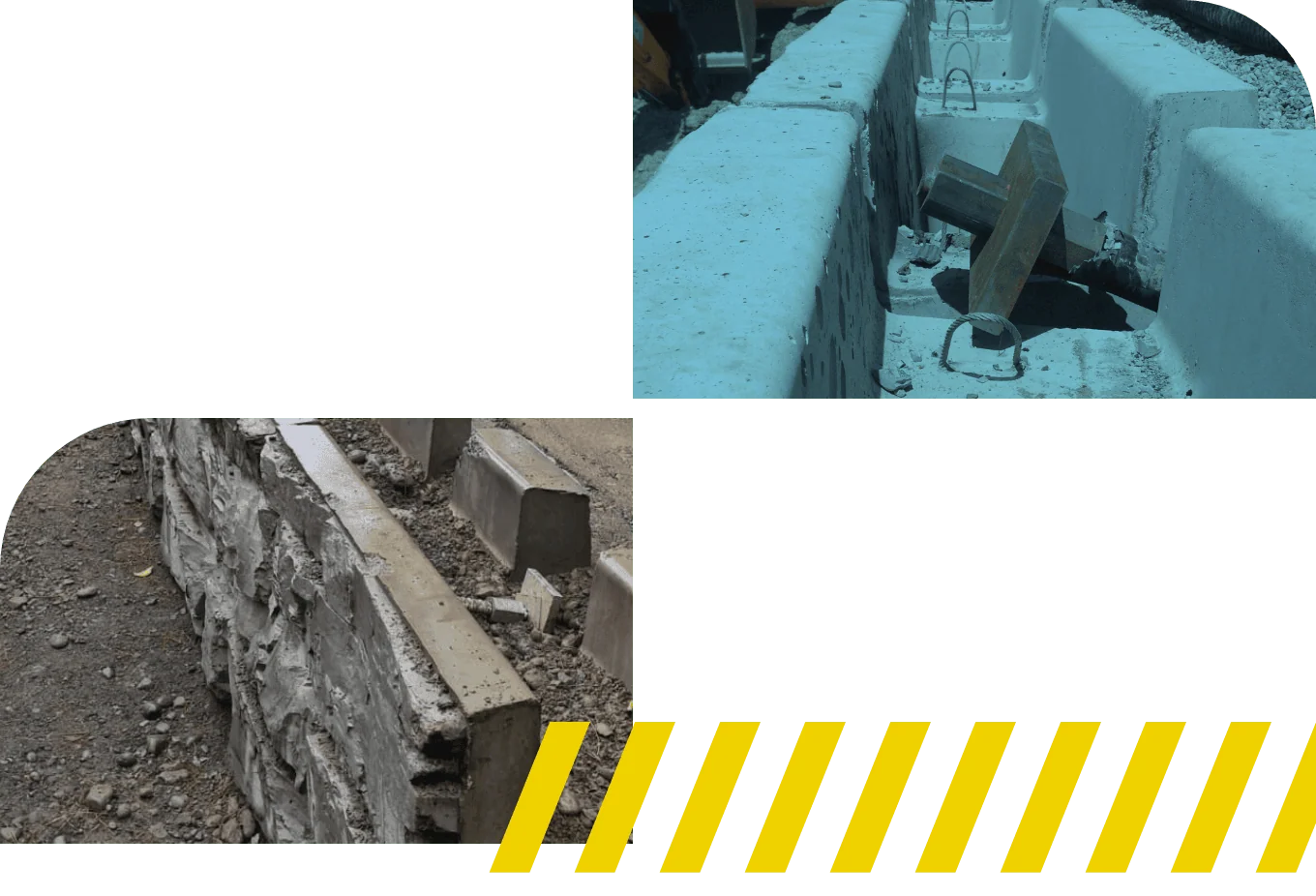

Also known as rock anchors or ground anchors, soil nails transfer lateral earth pressures to deeper, stable soil layers. Threaded steel nails are embedded at shallow angles into existing slopes, secured by plates installed within MagnumStone retaining wall blocks. MagnumStone’s interlocking system delivers structural reinforcement and outstanding natural looks for urban and commercial developments, as well as infrastructure projects.
fact check
Advantages of Soil Nailing Retaining Walls
How Do Soil Nailing Retaining Walls Work?

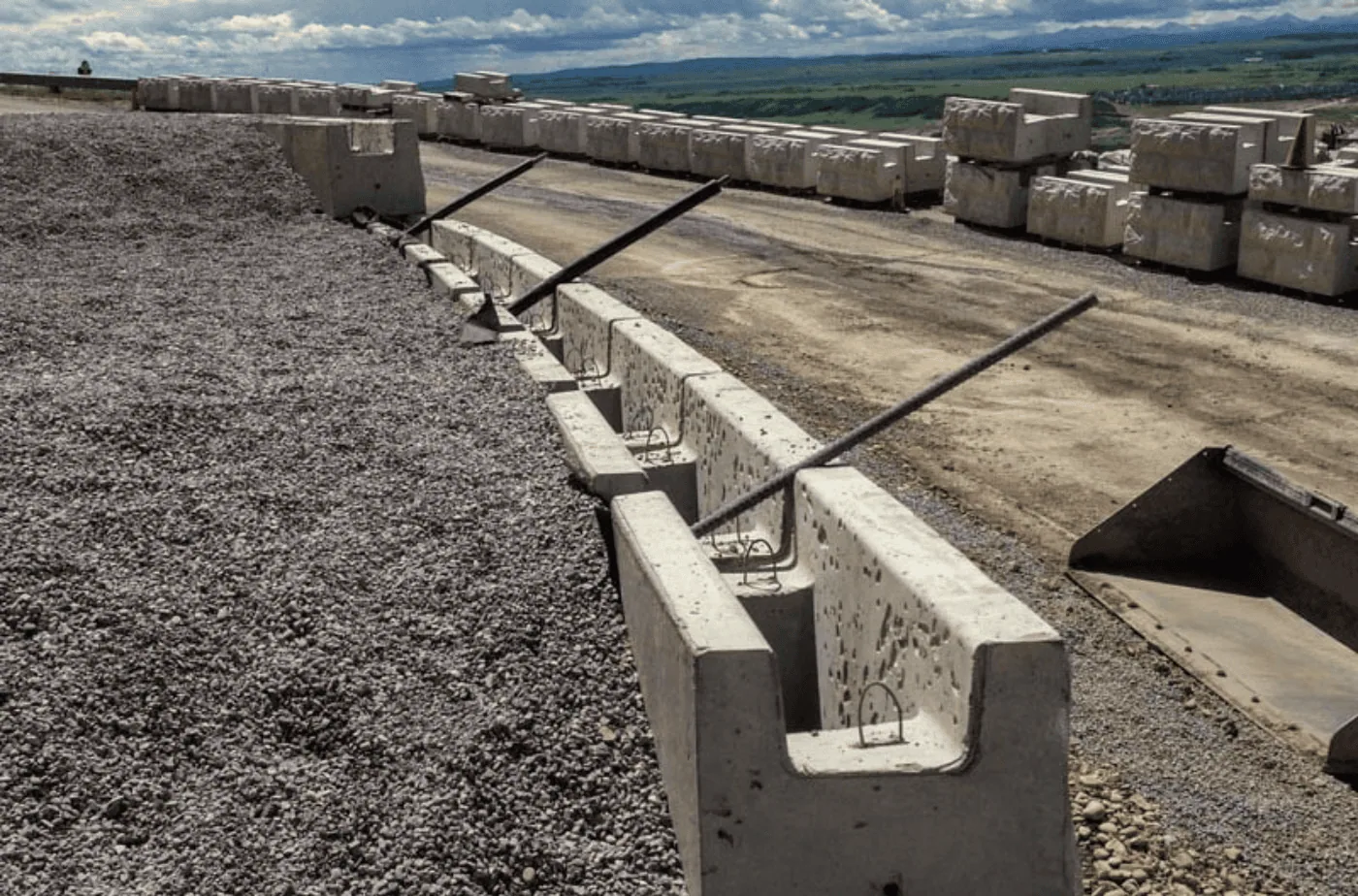

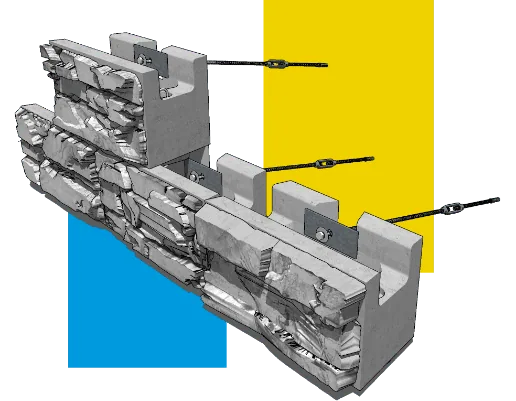

Soil nailing retaining wall designs stabilize slopes by combining tension-resisting steel nails with engineered concrete facings. Nails are installed at downward angles and grouted into the soil for reinforcement. MagnumStone’s precast blocks are anchored directly to the nail heads, providing additional reinforcement for load distribution.
This helps eliminate the need for traditional forms of soil nailing reinforcement, including wire mesh or shotcrete. That results in faster installations, stronger structural reinforcement, and natural facing aesthetics – ideal for constrained spaces and prioritizing architectural appearances.
Common Applications for Soil Nailing Retaining Walls

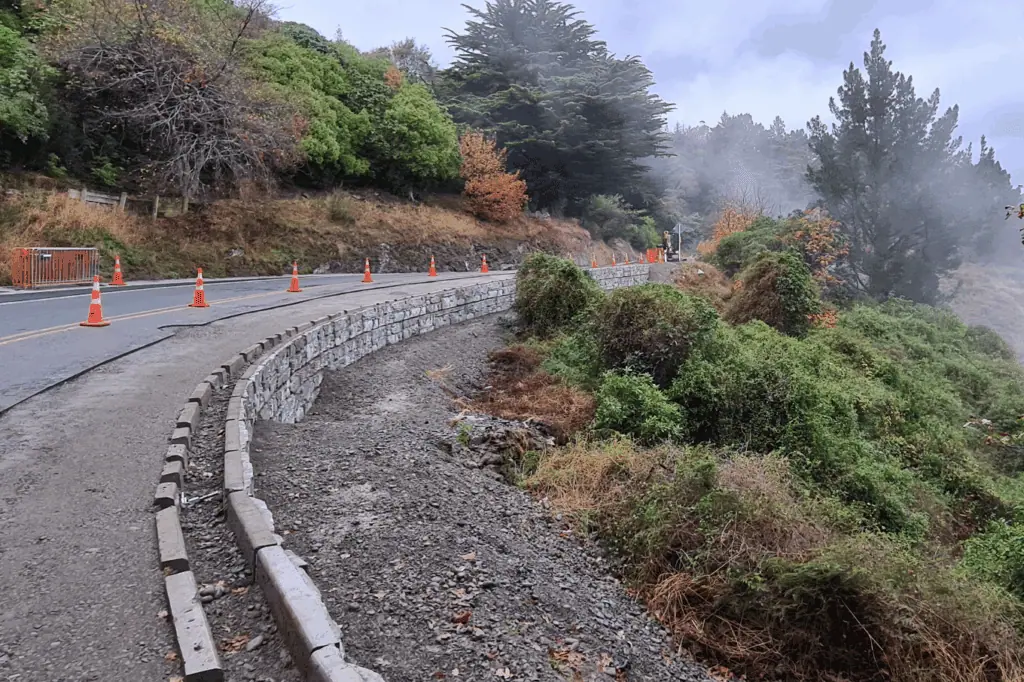

Landslide & Slope Failure Repairs
Quickly stabilize hillsides and deliver critical long-term, reinforced strength.

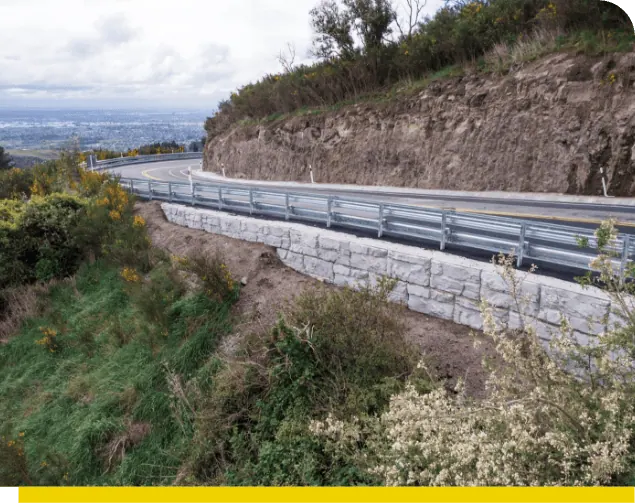

Urban Developments & Infrastructure Projects
Limit excavation and prioritize aesthetics with MagnumStone’s Soil Nailing designs.
When to Use Soil Nailing Retaining Wall Designs
Engineers often choose Soil Nailing retaining wall designs for cut slopes, when project sites have limited access and excavation depths. The system is capable of transferring loads from nail-to-block, eliminating deep backfilling and concrete curing delays of alternative solutions. The textured precast blocks complement their surrounding landscape, while providing strong, durable performance and efficient installations. MagnumStone Soil Nailing designs excel in space-constrained or time-sensitive retaining wall projects.
Key Design Considerations of Soil Nailing Retaining Walls
