gravity retaining walls

What are Gravity
Retaining Walls?

A gravity retaining wall exclusively uses the mass of its large interlocking concrete blocks to effectively retain soil loads from above and behind the wall. Gravity retaining walls’ long-lasting and exceptional strength protects and optimizes functional property space. The mass of MagnumStone’s big blocks hold back earth and control erosion with dynamic, world-class retaining wall solutions.

As a global industry leader, MagnumStone’s short and long gravity extenders complement its advanced block design to offer the most complete retaining wall system on the market. Trusted by the world’s top engineers, contractors and developers for walls of any shape and size, multi-length gravity extender units help retaining walls reach heights of over 40 ft. (12.19 m.) with supreme versatility.

Where are
Walls Used?

Gravity retaining walls offer advantages in common commercial or residential applications:

  • Properties with tight spaces and limited room for excavation

  • Extending properties to maximize value and usable space

  • Building tall gravity walls closer to property lines to optimize land

  • Install behind-the-wall services with minimal land disturbance

fact check

Advantages of Gravity Retaining Walls

  • Make Quick work of Projects

    MagnumStone blocks cover 8 sq. ft. (0.74 sq. m.) with each standard block.

  • Eco-Conscious Decisions

    MagnumStone hollow core blocks use 40% less concrete than solid concrete systems, are easy to lift with small equipment.

  • Efficient Installations

    Crews of 2-3 people can install over 1,200 sq. ft. (111.5 sq. m.) of MagnumStone blocks per day.

Extend the Possibilities of Gravity Walls

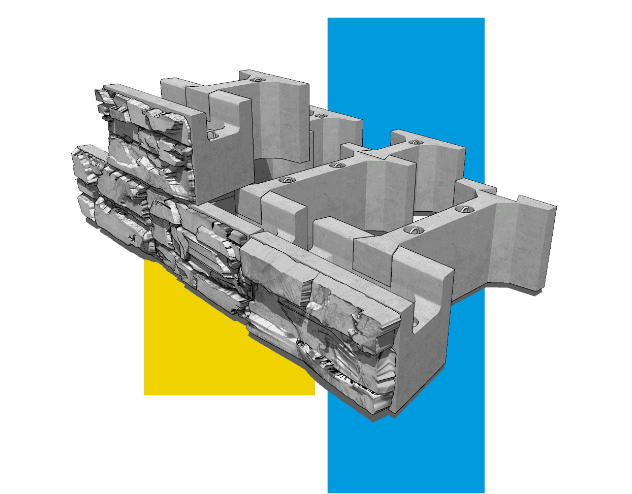

MagnumStone’s gravity retaining wall extenders do exactly as their name describes. They attach to the back of standard blocks. This is done to form an interlocking extension that fortifies and adds mass to the gravity retaining wall base courses. Gravity extenders increase gravity wall heights by adding wall depth in 2 ft. (0.61 m.) or 4 ft. (1.2 m.) increments. These wall extenders help retain gravity walls that perform well. Designers, installers, and landowners can trust and depend on them.

Why Use Gravity Extenders for Retaining Walls?

The gravity retaining wall extenders come in versatile sizes. They can overlap in tight corners for additional strength and flexibility. This fortifies and adds extra layers of protection to vulnerable areas of gravity retaining walls.

Build Taller Gravity Walls

Unlock the unlimited opportunities of tall gravity walls. Use the secure tongue-and-groove interlocking connection between wall blocks and multi-length extender units. Their extra mass and versatility enhance the strength of gravity retaining walls from the base up, easily reaching over 40 ft. (12.19 m.) in wall height. When building with gravity extenders, the sky is truly the limit.

Strengthen Outside Corners

Considerations for building a gravity retaining wall include reinforcing the outside corners. These areas are vulnerable to stress and pressure. To strengthen the outside corners, several techniques are available. Geogrid reinforcement creates a reinforced zone that is stronger than the surrounding soil. This reduces stress on the corners. Cantilevered design or using reinforced or precast concrete blocks are also effective methods. By using these materials, you can create a retaining wall that is functional, durable, and aesthetically pleasing.

Minimize Excavation Area & Reclaim Space

Gravity retaining wall extenders come in 2 ft. and 4 ft. units, so designers are never limited by their sizes for construction. No room for geogrid? Such walls can have a lower base-to-height ratio of excavation areas. This ratio can be as low as 40%, compared to typical geogrid retaining wall designs with 70%. Gain more usable space and easier access to piping and utilities behind the wall.

Gravity Solution

Load times may very depending on internet speed.


All related documents for this design option are listed here, or to view our entire downloads catalog click here

Gravity Wall Case Studies

Every MagnumStone project has a story behind it, not just backfill and drainage channels. Our extensively library of detailed MagnumStone case studies feature impressive versatility and retaining wall successes.
